Product Details:
Payment & Shipping Terms:
|

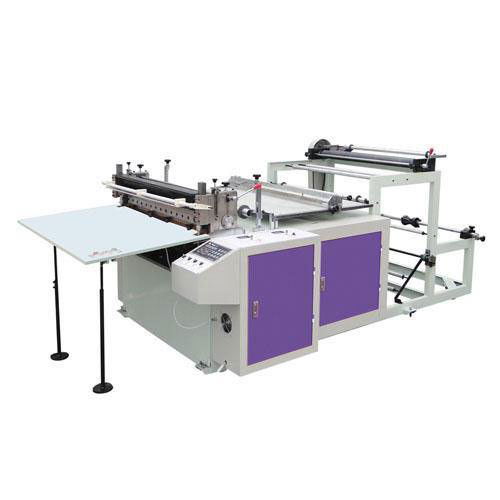

This machine is suitable for various kinds of paper, paper plastic composite, color composite such as large reel packaging materials cut. Widely used in paper products processing industry, printing and packaging industry, etc..
Product features:
1, this machine adopts the servo motor (or stepping motor) to control the fixed length cut. Photoelectric tracking correction system.
2, the transmission system adopts pneumatic, hydraulic system, photoelectric sensor and other centralized control, discharge system using hydraulic lifting device. The machine integrates light, electricity, liquid and gas, and has the advantages of simple operation, high cutting precision, high mechanical stability, low noise, etc..
3, motor frequency control, automatic counting, alarm stop, tension digital display and other functions.
4, the use of heavy duty cutting tool, the product is neat, no edges and corners.
| Model | JLQ1100 |
| Max paper width | 1100mm |
| power | 5kw |
| Weight | 2500kg |
| dimension(mm) | 5500×2000×1400mm |
| Max materials paper diameter | Ф≤1500 mm. |
| Material paper weight | 40g/㎡——500g/㎡ |
| Cutting length size | 20——1200mm |
| Fixed length precision | ±0.15mm |
| speed | 0-60 piece/min |
