Small box rotary slotter machine

China Small box rotary slotter machine supplier

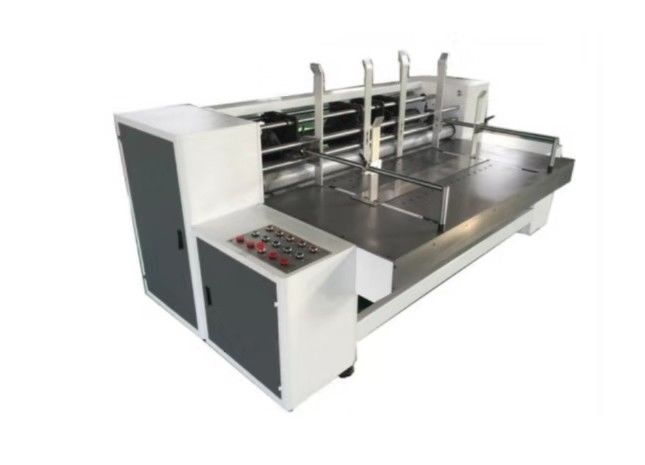

Large Image :  Small box rotary slotter machine

Product Details:

Place of Origin: CANGZHOU
Brand Name: JIALONG
Certification: CE ISO
Model Number: 2000mm

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: Standard export package
Delivery Time: 10 DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 SET/MONTH
Contact Now
Detailed Product Description

                            Small box rotary slotter machine

Small box rotary slotter machine



I. Introduction

This machine is manual operation and vacuum absorption auxiliary feeding system.(The wind strength can be adjusted). It can slot, cut corner, cut the extra side and press the lines of the corrugated cardboard. The slotting width is electric adjustment, and it attached a ruler that the scale can be read easily. The phase adjustment of slotting part is planetary gear structure. The machine adopts 360°electric adjustment. The up and down slotting knives and creasing knives can move synchronously (use exclusive tool to adjust left and right). This small machine is easy to operate and repair easily which is specialized for slotting small boxes.

II. Main structure and features

1. Feeding paper roller adopt patterned roller, feeding paper roller pressure adjustment adopt eccentric wheel adjust and left-right eccentric wheel, adjust the pressure synchronous

2. Pushing paperboard department adopt both sides baffle and latter baffle to fasten paperboard, to avoid the slotting error when pushing paperboard which make upper paperboard misplace, can fit to every kinds paperboard, and sending paper stable and accurate.

3. Slotting plate adopt full steel processed accessories, slotting knives adopt zigzag arc-shaped semicircle knives to slot and remove the scrap, paperboard get into slitting roller after slotting, slitting knives slit both sides of the paperboard (note:pressing wheel and slitting knives in one roller)

4. Paperboard is send out by six transmit shaft after slotting, corner-cutting, slitting, pressing, this machine power equipped with the frequency conversion speed regulator (speed adjustable freely).

5. This machine adopt electric planetary gear phase to adjust paperboard size, can adjust without stopping.



Technological parameter:

Model 2000mm
Max machine speed 100-120pieces/min
Max feeding size (L)1800*(W)600mm
Min feeding size (L)450*(W)170mm
Min height of box 70mm
Dimension (L)2900*(W)1500*(H)1400mm
Weight 1500kg
