※structural features:
★speed:150m/min.
★effective width:1600mm.
★main corrugated roller:￠320mm(According flute differ),pressure roller￠365mm,preheat roller￠400mm.
★using negative pressure type design, low heat loss,helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, pressure uniform, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.

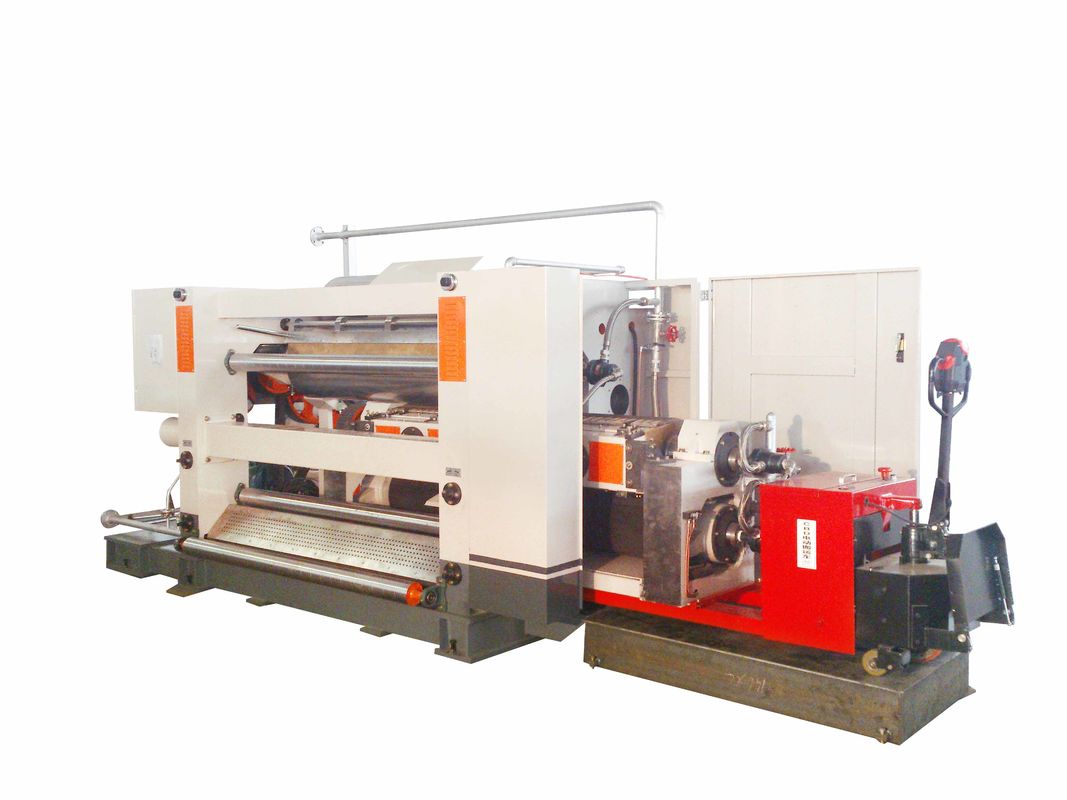

★quickly change rollers in 15 minutes, while change corrugated roller with the electric trolley loading,the entire group of corrugating with motor drive,put into the machie,fixed to the machine base,only need a few buttons can complete the replacement quickly and easily.
★corrugated roll adopt 48CRMO high quality alloy steel,dealing with heating, after grinding tungsten carbide surface treatment.
★corrugated roll and pressure roll adopt the airbag control system with high stability, at the same time with pneumatic control buffer effect.
★Glue volume control with electric adjustment,rubber septum electric device,the glue system can operate independently when the motor stops,prevent glue exhausted.
★the moveable type glue unit is convenient to clean and maintain.
★easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
★built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.
★main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly.
※technical parameters:
1,effective width:1600mm 2,operation direction:left or right(Determined in accordance with the customer's facility)
3,speed:150m/min 4,temperature range:160—200℃
5,air source:0.4—0.9Mpa 6,steam pressure:0.8—1.3Mpa
7,corrugated flute:(UV type or UVV type)
※roller diameter parameters:
1,diameter of up corrugated roller: ￠320mm 2,diameter of pressure roller:￠365m
3,diameter of glue roller:￠268mm 4,diameter fixed paste roll :￠155mm
5,diameter of preheater:￠400mm
※powered motor parameters:
1.main frequency drive motor:22KW rated voltage:380V 50Hz Continuous (S1) working standard
2,suction motor:11KW rated voltage:380V 50Hz Continuous (S1) working standard
3,glue reducer:100W rated voltage:380V 50Hz short(S2) working standard
4,glue gap motor:250W rated voltage:380V 50Hz short(S2) working standard
5,glue pump motor: 2.2KW rated voltage:380V 50Hz Continuous (S1) working standard
※Mainly purchased parts, raw materials and origin:
| Name of main parts | Brands or place of origin | material |
| Wallboard and Pedestals | Production by own | HT200 |
| Transmission case | Purchased this property | QT200 |
| Rotary joints and metal hoses | Fujian quanzhou yujie | |
| Main frequency motor | Hebei hengshui | 22KW frequency motor |
| reducer | Taiwan CPG | |
| bearing | HRB,ZWZ,LYC or zhejiang | Tile roller and pressure roller are from America TIMKEN |
| Seat belt bearing | Zhejiang wuhuan | |
| High pressure air | Shanghai yingfa | |
| cylinder | Zhejiang sonor CSM | |
| Solenoid valve | Japan SMC or taiwan Airtac | |
| traps | Beijing traps | Inverted bucket |
| Contactors and Relays | France Schneider | |
| Position Sensor | Korea Autonics | |
| Frequency controller | Taiwan delta | |
| PLC | Taiwan delta | |
| Human machine interface | Taiwan weintek |
