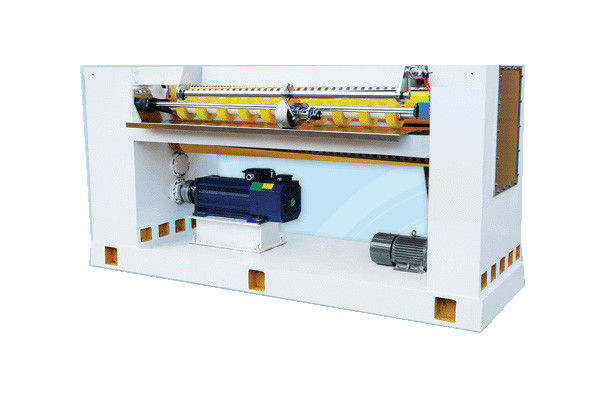

Large Image :  NC Cut off machine straight knife type

Product Details:

Place of Origin: CHINA
Brand Name: JIALONG
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: standard export package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets/month
Contact Now
Detailed Product Description

NC Cut off machine straight knife type

NC - 2000

120 computer straight knife transverse corrugated cardboard machine configuration

Working width: 2000 mm

Design speed: 0 ~ 120 m/min

The machine total power: 14.37 KW

Characteristics of the equipment: the main motor is frequency conversion motor, Germany Bryant servo motor drive, the kunlun pass too 7 "color touch screen display

Paper cutting knife shaft diameter: 190 mm

Paper cutting length 400 mm - 9999 mm, cutting precision: + / - 1 mm (uniform)

change order type:manual or automatic and can store 200 sets order

Using plate type set front steel serrated blade

Drive gear adopt cr 40 with tooth surface after quenching and grinding, the fitting is installed, the chain side spray type lubrication.

Appliances: zhejiang chengtai brand

Raw materials and purchased components

On both sides of the wall panel and the base material: cast iron HT200

Bearing: the producing area of Harbin and domestic brands

Feed motor (electromagnetic adjustable speed motor) power: 3 KW one origin: hebei

Servo controller power: 15 KW one origin: Germany is kobe Bryant

The main drive motors (variable frequency motors) power: 11 kw one origin: hebei

total weight:3.5T
