BFY thin blade slitter scorer machine(bottom can move type)

China BFY thin blade slitter scorer machine(bottom can move type) supplier
BFY thin blade slitter scorer machine(bottom can move type) supplier BFY thin blade slitter scorer machine(bottom can move type) supplier BFY thin blade slitter scorer machine(bottom can move type) supplier

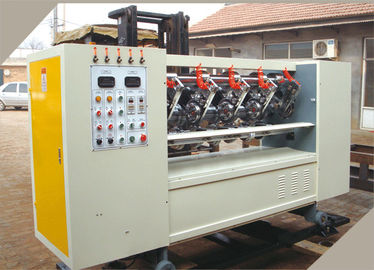

Large Image :  BFY thin blade slitter scorer machine(bottom can move type)

Product Details:

Place of Origin: CHINA
Brand Name: JIALONG
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: standard export package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets/month
Detailed Product Description

BFY thin blade slitter scorer machine(bottom can move type)BFY thin blade slitter scorer machine(bottom can move type)

BFY thin blade slitter scorer machine(bottom can move type)

Thin knife cutting part adopt newly type thin blade high-speed cutting machine,cardboard incision level off is smooth without crashing collapsing; Pneumatic sharpening; this part to achieve production process to be automatic and manual sharpening, sharpening time and clearance can be set to ensure the blade, time blade sharp.

The machine is equipped with electric axial displacement device, effective cooperation of paper offset;

Manually adjust the cardboard specifications, simple and practical;

Transmission of the synchronous belt, high accuracy



Machine dimension (mm)

3200×1100×2200

3500×1100×2200

3800×1100×2200

Power (KW)

5.5/7.6

5.5/7.6

5.5/7.6

Max slitting width (mm)

1800

2100

2300

Min slitting width (mm)

140

Min scoring width (mm)

80

Scoring height (mm)

0-12

Blade (mm)

φ200×122×1.2

Blade & Scoring Composed Type

Three blade Four scoring/ Four blade Six Scoring
/ Five Blades Eight scoring
