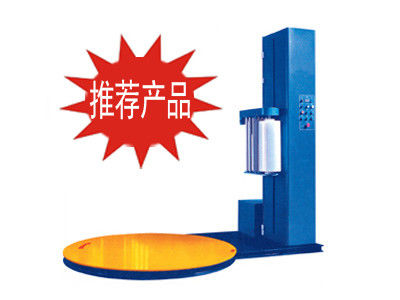

Large Image :  Full Automatic Pallet Wrapping Machine 1650F-W

Product Details:

Place of Origin: CHINA
Brand Name: JIALONG
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: standard export package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets/month
Contact Now
Detailed Product Description

Full Automatic Pallet Wrapping Machine 1650F-W



1.Machine introduction

It has weight function:can weight of the products weight

Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.



2,Technical Parameter

Wrapping size(L*W)

(500-1200)mm*(500-1200)mm

                                Packing height

L type:(500-2000)mm

H type: (500-2400)mm

Y type: (500-higher than 2400)mm

Packing efficiency

20-40 loads/hour

Turntable speed

0-12rpm

Turntable diameter

Diameter:1650mm  height:85mm

Turntable loading(max)

2000kg

Up-down frame

Double-chain,Up-down speed variable

Film carriage

Pre-stretch

Control system

PLC

Machine weight(max)

700kg

Machine size

2650mm*1650mm*2400mm

Packing size

2650mm*1650mm*700mm

Electrics

Single-phase 220V/50Hz

Power

Turntable:0.75kw,film carriage:0.3kw,up-down:0.4kw



Machine Specifications could be met

Material usage:

Machine is using a standard type of stretch film packaging material for creating a hard to tear,resistance,waterproof cover over the loads.The film is recyclable.Specification:width:500mm,thickness:20-25 microns,length:1500meters,weight: max:16kg,stretchable,one side sticky,transparent or colored.

4.Function of the machine:

1.Control System

PLC control

Photo-eye auto-height sensing pallet height

Separate top ,bottom & up-down Wrap Counter options

Over wrap time is up to create an overwrap

Reinforce wrap times is set to better secure 2 loads placed on top of each other

Film Tension Control adjustment on the panel

Separate start, pause and emergency stop buttons

Power indicator

Manual carriage up/down

Variable Turntable Speed

Carriage up/down speed control

Manual/automatic exchangeable

2.Turntable

1650mm Diameter Structural steel plate

85mm Height floor to top of turntable

3.Turntable drive

0-12rpm variable turntable speed by frequency changer

Position turntable alignment

Soft start

4.Film carriage

Powered pre-stretch system up to 250% to min film consumption

Film delivery variable speed by separate DC Drive Motor

Electronic film tension control adjustment on panel

Film dancer-bar with variable speed output

5.Film carriage Drive

Heavy duty double-chain carriage lift, calm and safety

Film carriage variable speed by frequency changer
