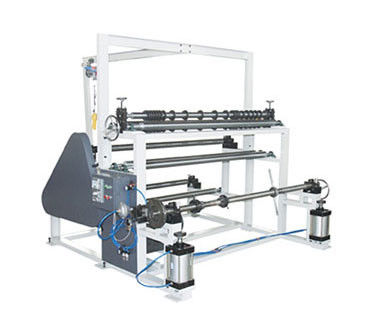

1600A double shelf semi automatic slitter machine:
semi automatic slitter machine
1.main technical parameters
1. Base paper width 1600mm
3,Base paper diameter Ф1200 ㎜
3. Winding Diameter Ф650㎜
4,base paper inner core Ф76㎜
5,winding paper inner core Ф76㎜
6,slitter width 40-1600㎜
7,Base paper gram weight 60-510g⁄㎡
8,slitter knife 18set
9. Control way Electromagnetic Speed Adjustment
10,main power 3.0KW
11,paper giving way Pneumatic type
12,paper unloading type lifting type
13,brake device Pneumatic adjustable type
14 winding paper shelf Inflatable shaft X 2
15,external dimension 4500×2600×2200㎜
second. Characteristics
Good and inexpensive, simple operation, easy to use, save manpower.
|
Technical parameter
|
|
|
Parent roll width
|
1600(mm)
|
|
Parent roll diameter
|
Φ1200(mm)
|
|
Rewind diameter
|
Φ800(mm)
|
|
Slit width
|
＞40(mm)
|
|
Paper model
|
80-510g
|
|
Power
|
5.5kw
|
|
Paper on the way
|
Pneumatic
|
|
Brake
|
Pneumatic
|
|
Unload
|
Electric hoist
|
|
Speed
|
200m/min
|
|
Operator
|
1
|
