PRODUCT INTRODUCTION:

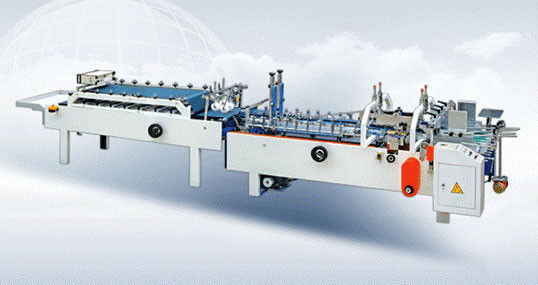

ZH-800/800C/880C/1000 is the company's main push ordinary type folder gluer,its stability,versatility and flexibility are the user's praise. Small to large box can paste. For small boxes,it can make 40,000 to 50,000 pcs.per hour lt is an ideal equipment for printing industry.
CHARACTERISTICS:
Line speed:0~220 m/min continuous adjustment.
Usage paper:210~600g/m2 Paperboard.
The box forming:Either side folds,the both sides prefold and either
side glue.
Paper feeding:Automatic feeding
Binder:Dissolve glue.
Electric:Single-phase AC220V 2.2KW
Weight:1800kg
Dimension:5800×900×1300mm
The counting range:0~999999(full-auto matic)
Technique parameter:
| Model |
AMax |
AMin |
BMax |
BMin |
CMax |
CMin |
Weight |
|
ZH-800 |
560mm |
105mm |
550mm |
50mm |
270mm |
50mm |
1.5T |
|
ZH-800C |
560mm |
65mm |
550mm |
50mm |
270mm |
30mm |
1.5T |
|
ZH-880 |
660mm |
105mm |
550mm |
80mm |
330mm |
50mm |
2.0T |
|
ZH-1000 |
760mm |
130mm |
600mm |
80mm |
380mm |
60mm |
2.3T |
