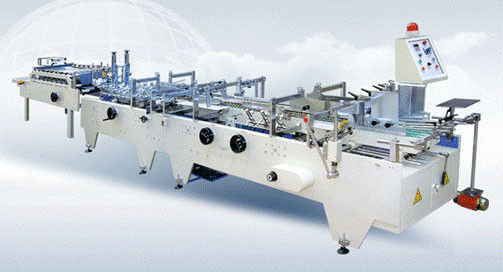

ZH800A/880A/1000A Automastic Small Box Folder Gluer with Prefold function

PRODUCT INTRODUCTION:

The ZH-800A/880A1000A is one type of the pre-fold equipments. lt adds first line folds 180°, and third line folds 90°. with preford function, the box can be open easily, On the automatic packing machine, particularly for the medicine box. lt is widely uesd in medicine box, wine box and other box. lt's an essential equipment for printing industry.

CHARACTERISTICS:

Box forming:Either side folds, the both sides prefold and either side glue.

Paper board feeding:Automatic feeding

Way of folding:First?second and fourth lines fold 180°,third line fold90°.

Line speed:0~220 m/min continuous adjustment.

Usage paper:210~600g/m2 Paperboard.

Binder:Dissolve the type.

Speed:6000c/min

Electric:Single-phase AC220V 3.7KW

Weight:2000kg

Dimension:8500×900×1300 mm

The counting range:0~999999(full-automatic)

Technique parameter:
