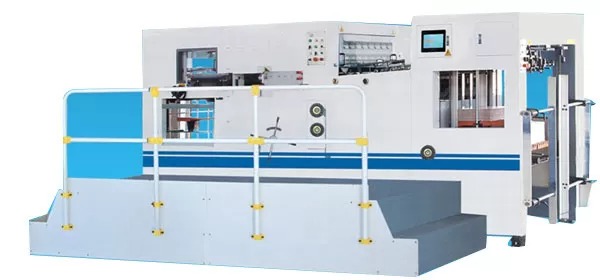

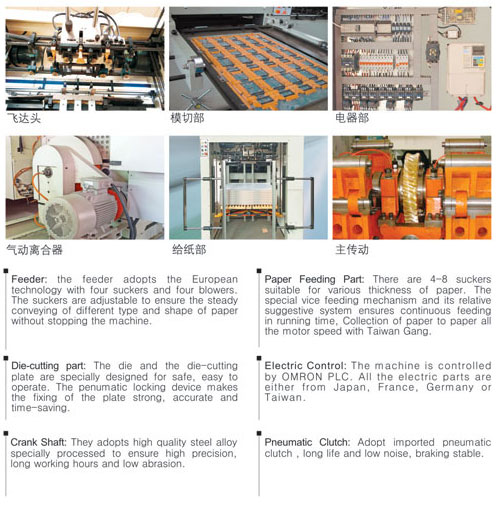

KMY-1200 is a special equipment applying to die-cutting of advanced colorful boxes and cartons. The machine combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving stepless speed variation. The machine has a lot of sensors and safety-ensuring devices to guarantee the safety of operator and the environment. Frontal and back pressure can be adjusted separately. It is convenient to stop the machine by handy. It can also realize die-cutting without clipper margin. Main Specifications:

Model	KMY1080	KMY1100	KMY1200
Max.size(mm)	1080×780	1100×780	1200×780
Min.size(mm)	400×370	400×370	400×370
Maximumcuttingsize(mm)	1070×760	1090×770	1185×770
Minimumcuttingsize(T)	320	320	320
Papercan be processed(mm)	Cardboard0.1-3 Corrugated paper≤4	Cardboard0.1-2 Corrugated paper≤5	Cardboard0.1-1.5 Corrugated paper≤5
Max speed(sheets/h)	7500	7000	7000
Maximum height ofstacks of paperto the paper(mm)	1100	1100	1100
Receivedthe maximum height ofpileof paper(mm)	1100	1100	1100
Total power(KW)	?16.95	17	17.5
Weight(T)	17.5	17.8	18
