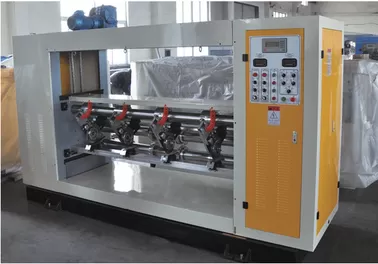

Features: ◎ Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr. ◎ Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet. ◎ Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency. ◎ Electric control lift-down and correct error, easy to operate, suit for different requirements. ◎ Adopt China famous brand or imported electric element, dependable performance. ◎ Adopt synchronous belt drive, low noisy and work steady. ◎ It could be adopts double machine type, easy and fast change cutting order. ◎ Max running speed for production line:150m/min Technical parameters:

Model		2000	2300	2600
Machine dimension(mm)		3200*1200*2200	3500*1200*2200	3700*1200*2200
Power		8.5kw	8.5kw	8.5kw
Max slitting width	Inverse blade	1800mm	2100mm	2400mm
	Positive blade	1800mm	2100mm	2400mm
Min slitting width	Inverse blade	140mm	140mm	140mm
	Positive blade	140mm	140mm	140mm
Min scoring width	Positive scoring	30mm	30mm	30mm
	Inverse scoring	80mm	80mm	80mm
Scoring height		0-10mm	0-10mm	0-10mm
Blade(mm)		φ200*122*1.2	φ200*122*1.2	φ200*122*1.2
Blade & Scoring Composed Type		Three blade Four scoring/ Four blade Six Scoring/ Five Blades Eight scoring
