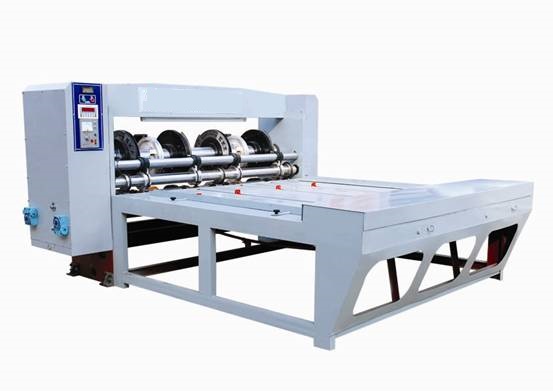

Performance of the main mechanisms: series slotting machine 1: Semi-automatic chain feeder, side baffle fix position. 2: Finish slicing, pressing, slotting ,corner cutting in once. 3: Double worm phase 360degrees adjustment. 4: Synchronous adjusting carton height. 5: Helical gear transmission, use oil immersed type lubrication. Options: 1: Electric planet transmission, adjusting phase. 2: Slotting tool apron and creasing wheel synchronous adjusting. 3: Hole & handle attachment.

PARAMETER NAME	SPECIFICATION
REAMER PLATE DIAMETER	￠400				￠480
STYLE	YQ-2000	YQ-2200	YQ-2400	YQ-2600	YQ-2000	YQ-2200	YQ-2400	YQ-2600
BOARD AREA(mm)	1200X2000	1200X2200	1200X2400	1200X2600	1450X2000	1450X2200	1450X2400	1450X2600
MAX SLOT THICKNESS(mm)	300	300	300	300	350	350	350	350
SLOT WIDTH(mm)	7.0	7.0	7.0	7.0	7.0	7.0	7.0	7.0
MIN.SLOT SPACE (positive reamer)(mm)	120	120	120	120	150	150	150	150
SLOT SPEED(pieces/min)	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70
