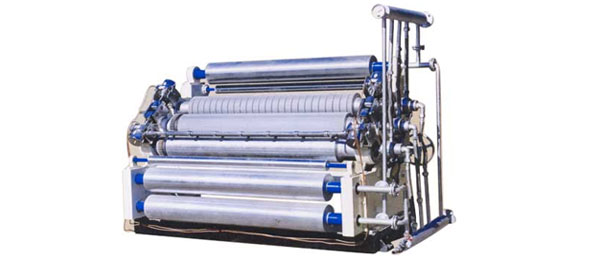

This semi-automatic production line combined with stand for wind paper,corrugation marchine and paper cutting marchine,withch can continuously produce all size of single side corrugated paper,It has some characterstics such as advanced process,high effiency,available to production in large amount, ,It’s a satisfied dquipment for small,middle paper-board box company to improve technology this kind single facer is mainly used in small size corrugated factory. specification:

Max Design speed	45 m/min
Producing speed	30-35 m/min
Width of	1200mm
Material of upper-lower Corrugating roller	45# Steel
Processing	The surface of upper-lower roller is common processed
Diameter of Corrugated Roller	φ270mm
Style of Transmit Paper	Finger Type
Style of Control Roller	Pneumatic control the upper roller, pressure roller and glue roller
Lubrication	Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller
Glue Roller	φ215mm,Manual Adjusting the Glue Width
Glue supply	Glue circulating system (Storage tank + glue pump)
Type of Corrugated Roller	B Flute
Drive	Drive Motor:5.5 kw
