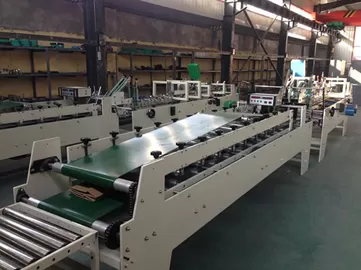

PRODUCT INTRODUCTION: ZH800/800C/880C/1000 is the company’s main push ordinary type folder gluer,its stability,versatility and flexibility are the user’s praise. Small to large box can paste. For small boxes,it canmake 40,000 to 50,000 pcs.per hour lt is an ldeal equipment for printing industry. CHARACTERISTICS: ● Line speed:0～220 m/min continuous adjustment. ● Usage paper:210～600g/m2 Paperboard. ● The box forming:Either side folds,the both sides prefold and eitherside glue. ● Paper feeding:Automatic feeding ● Binder:Dissolve glue. ● Electric:Single-phase AC220V 2.2KW ● Weight:1800kg ● Dimension:5800×900×1300mm ● The counting range:0～999999(full-auto matic)

Model	AMax	AMin	BMax	BMin	CMax	CMin	Weight
ZH-800	560mm	105mm	550mm	50mm	270mm	50mm	1.5T
ZH-800C	560mm	65mm	550mm	50mm	270mm	30mm	1.5T
ZH-880	660mm	105mm	550mm	80mm	330mm	50mm	2.0T
ZH-1000	760mm	130mm	600mm	80mm	380mm	60mm	2.3T



Model	Use the amount of electricity	Governor extent	Contour dimension
ZH-800	220v 2.2kw	0～220m/min	5800×900×1300mm
ZH-800C	220v 2.2kw	0～220m/min	5800×900×1300mm
ZH-880	220v 2.2kw	0～220m/min	5800×1050×1300mm
ZH-1000	220v 2.2kw	0～220m/min	5800×1200×1300mm
