Introduction
1,Functions and feature

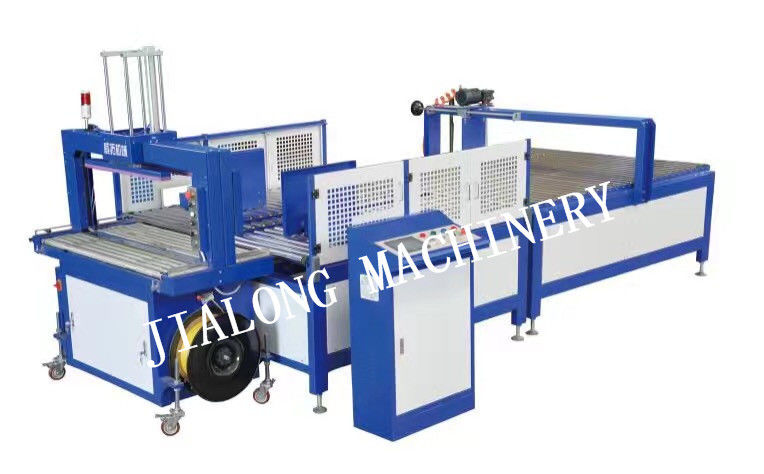

DBJ1200A model automatic strapping machine is mainly used in automatic strap after automatic stitching or automatic gluing, the machine includes turning, pat in order, pressurized strapping. Adopt PP strapping tape, firm, no rebound, less damage in paper edge. The whole process automatically finish, without human intervention, can save a lot of artificial cost. It’s first choice of packaging companies to reduce consumption and increase profit, such as printing plant, paper products factory.
2, Main structure
The machine is mainly composed of 4 units: receiving sheet turning unit, pat in order unit, conveying unit, and pressurized strapping unit.
3, Each unit main feature:
(1)receiving sheet turning unit
1. Smoothly receive former process cardboard conveying
2. Two-stage touch type turning, turn cardboard 90°corner.
(2)Pat in order unit
1,Can adjust according to different specifications carton size.
2,Four directions automatically pat in order and positioning, and then convey.
3,Pat can effectively remove the scissors.
(3) conveying unit
Convey carton smoothly after tidying, improve work efficiency
(4) pressurized strapping unit
1,Pneumatic pressure to compact several cardboard.
2,PP tape automatic strapping, strap firm or elastic adjustable, paper edge damage is light.
3,Automatically adapt to the cardboard size
4,Photoelectric detection strapping position
5,Strapping 1 ~ 2 way, uses the knob switch.
6,Automatically convey after strapping.
(5)Working process
Receive sheet turning——→pat in order——→convey——→ pressurized strap——→finish conveying
4,Technical parameters
1, Equipment name:automatic strapping machine
2, Model:1200
3, Main technical parameter:
Max sheet size:1200×1200
Min sheet size:300×400
Working speed:10pkg/min, 2strap/pkg
Machine dimension: 5800(L)×2300(W)×1800MM(H)
Power supply:Three phase four phase system distribution (three-phase 380V+ zero)
Total power:2.2kw
Machine net weight:2.1T
Main feature:
A, Adapt to automatic strapping after automatic stitching.
B, Reduce rely on manpower, replace workers.
C, Work is compact, no need human intervention.
D,Carton boxes after strapping are mouth tight and solid, no rebound, less sticky box edge breakage, etc
E,Less workers, higher speed, 2 ~ 4workers less than ordinary strapping machine, 10 to 20 workers less than manual strapping.
F,Suitable for exported packaging, environmental packaging, such as drinks box, beer case, instant noodles box, ceramic tile box, these high class packaging carton boxes.
5,Main purchased components origin
A,Electric components
Name Brand
Inverter Schneider
Contactor Schneider
PLC Siemens/Panasonic
photoelectric switch Omron/B+F
Motor Taibang/Wanxin
