Semi-automatic Folder Gluer(Press model)

China Semi-automatic Folder Gluer(Press model) supplier
Semi-automatic Folder Gluer(Press model) supplier Semi-automatic Folder Gluer(Press model) supplier

Large Image :  Semi-automatic Folder Gluer(Press model)

Product Details:

Place of Origin: CHINA
Brand Name: JIALONG
Certification: CE ISO
Model Number: 1500/1800/2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: standard export package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets/month
Detailed Product Description
Total Power: 10KW Model: XYZ-123
Dimensions: 8500mm X 1600mm X 1600mm Folded Carton Type: Regular Slotted Carton, Crash Lock Bottom Carton
Control System: PLC Control Max. Sheet Size: 1200mm X 2600mm
Feeding Type: Automatic Machine Weight: 5000kg
Glue Type: Water-based Glue Max Paper Size: 1200mm X 2600mm
Max Speed: 200m/min Min. Sheet Size: 260mm X 400mm
Machine Dimensions: 9000mm X 1500mm X 1600mm Max. Speed: 300m/min
Paper Thickness: 1-8mm

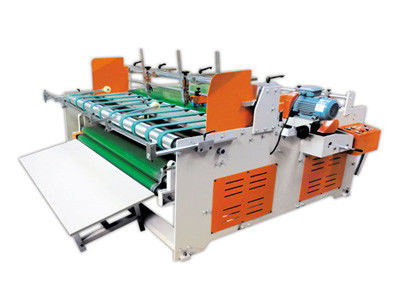

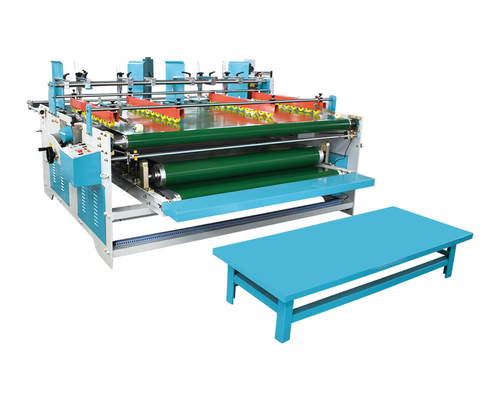

Semi-automatic Folder Gluer(Press model)

Semi-Auto Gluer Machine (Combined pressure model) is the latest exploit. According to the small order of the user,

1. It has a small volume and cover small area,

2. Easy operation without of having experience, applicability range is wide.

3. Suitable for small quantity produce and simple to change variety.

4. Ordinary carton and heterogeneous shape can be glued,

5. It saves glue and the glue dosage is one third of the manual glue dosage.

6. Maxium mechanical speed is 56m/min, efficiency is 4 times higher than manual operation.

7. Adhesive is strong, tidy and not leak glue, UV light membrane and plastic coated of sticky mouth section can be polished and removed by two-headed burnish implement, improving the glue adhesive and solve the difficulty of some cartons are easy to opening glue problem in some seasons.

8. With manual folding carton, it will improve the work efficiency and suitable for wrong indentation line made by automatic machine, special abnormal shape and cartons with window on paperboard.

Grinding paper department

1. The burnishing wheel is adopt special material for its high hardness and long life,

2.Highspeed burnishing wheel improve burnishing paper effect, efficient cleaner adsorptive the paper scraps, keep clean and tidy work environment.

Glue department

1. Adopt stainless steel bucket for suppling glue, hard to rust, high corrosion resistance.

2. Multiple types of pasting wheel, meet all kinds of production.



Model
                  XGM-1500
                   XGM-1800
Voltage
3-380VAC
3-380VAC
Hz
50/60hz
50/60hz
Power
3.2kw
3.2kw
Current
6.3A
7A
Weight
1.0T
1.3T
Overall size
2200x1900x1300mm
2200x2400x1300mm
Max size of box
1500x1100mm
1800x1100mm
Min size of box
200x260mm
200x260mm
