●Adopt the bottom paper push the rules walk paper of way, insure the fixed position more accurate.
●The adoption imports the electric appliances component, safe credibility.
●Adopt the bottom paper absorbs the breeze leather belt to transport, succeeding to solve the corrugated arch hard nut to crack.
●Apply to face the paper gram heavy>200gs/m2, the bottom paper>250gs/m2, the ABCDEF corrugated paper and carton.
Part elucidation
|
|
|
 |
| All adoptions import the electric appliances component, break-down rate Low, the quantity is stable, the operation credibility |
The adoption pushes the rules method, making face the paper and the bottom papers in to stick to match. |
Adjustable type evenly the gum roller , the net roller ability is even to draw the cloth paper surface. |
 |
 |
 |
|
The high accuracy presses to match the roller to insure to press to match the quantity. |
The adoption imports to trans-port the leather belt, function stability, through long enduring |

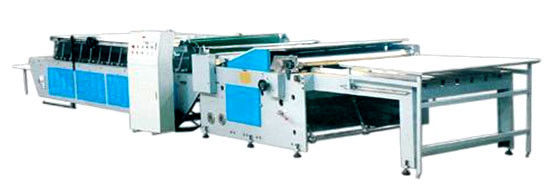

The main accuracy of the laminator Machine is in the stalk, all stalk of this Machine are the high carbon steels all |
|
Model |
TMB1300 |
TMB1450 |
|
Max. size(mm) |
1300×1100 |
1450×1100 |
|
Mini. size(mm) |
360×360 |
360×360 |
|
Machine speed |
0-45m/min |
0-45m/min |
|
Overall dimension |
10.66×1.98×1.26m |
10.66×2.23×1.26m |
|
Total weight |
4000kg |
4300kg |
|
Total power |
4.3kw |
4.3kw |
|
Surface paper require Paperboard |
≥200g/m2 |
≥200g/m2 |
|
Bottom paper require Paperboard |
≥250g/m2 |
≥250g/m2 |
