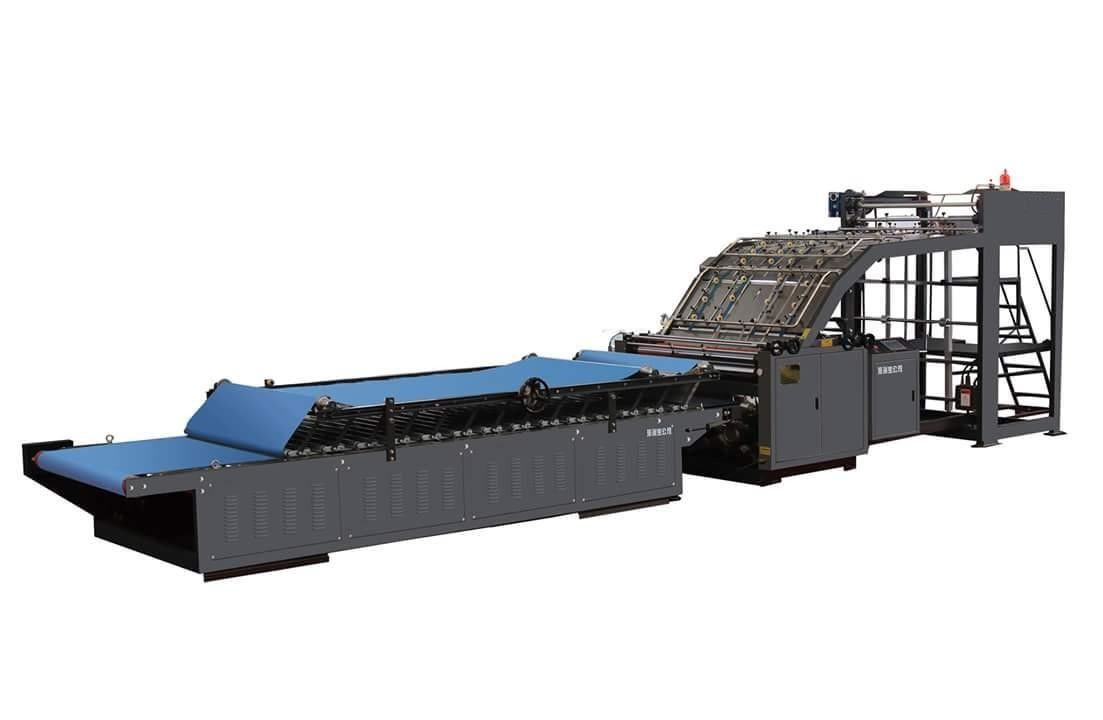

Major feature: TMH is a new pasting machine which improved by TM type increased surface paper automatic lifting mechanism, can make surface paper good piled, using photoelectric automatic ascension, reduce handing surface paper problems at working, make work more efficient!
The machine adopts Taiwan appliances, with double frequency conversion,PLC, servo motor. Banned the brake, clutch and bottom light eye signal converter control, realized PLC servo single control to be independent.
Technological parameter:
|
model
|
TMH-1300
|
TMH-1400
|
TMH-1500
|
TMH-1600
|
|
Max size of cover face
|
1300x1100mm
|
1400X1250mm
|
1500X1250mm
|
1600X1250mm
|
|
Min size of cover face
|
360x360mm
|
360x360mm
|
360x360mm
|
360x360mm
|
|
Economic speed
|
0-100piece/min
|
0-100piece/min
|
0-100piece/min
|
0-100piece/min
|
|
precision
|
≤±1mm
|
≤±1mm
|
≤±1mm
|
≤±1mm
|
|
power
|
7kw
|
7kw
|
7.5kw
|
7.5kw
|
|
size
|
11.6x2.0x2.5m
|
11.6x2.1x2.5m
|
11.6x2.2X2.5m
|
11.6x2.3X2.5m
|
|
weight
|
3.5T
|
3.5T
|
3.5T
|
3.5T
|
