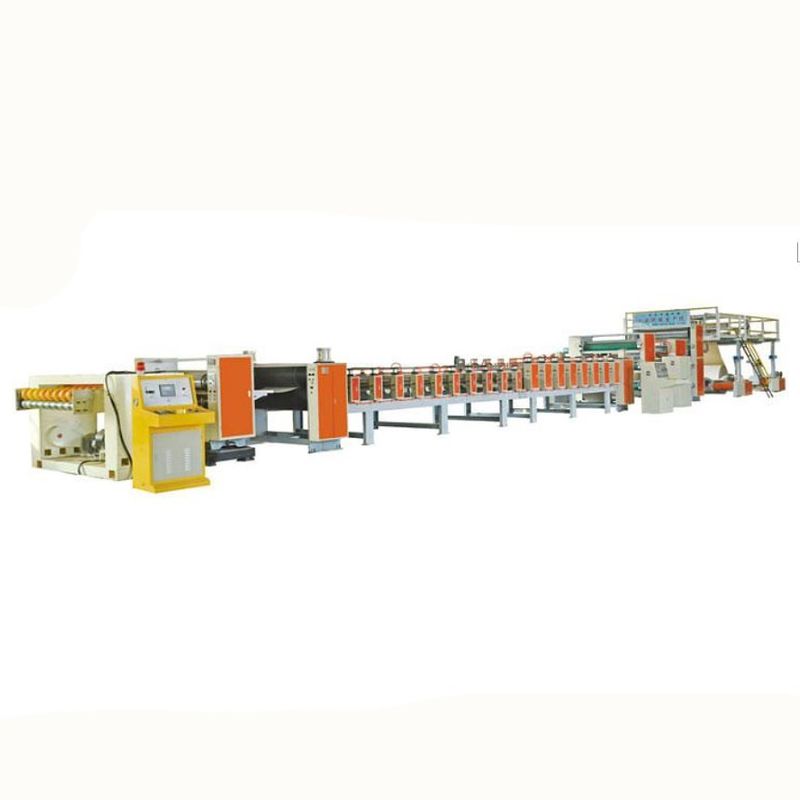

1600mm 4ply hard cardboard production line
1,design speed :80m/min
2,working speed:40-60m/min
3,workign width:1600mm
4,cut paper length:500mm-9999mm
5,paper precision:±1mm
6,cardoards thickness:3-4mm
7,capacity:3-4T/h
8,production line length:36meter(can design this as per customer need)
9,motor :380V 50Hz 3phase
10,machines total power:about 120kw, (actual using power about40-80KW)
11,using glue quantity:15-30g per layer /m2
| Design speed:80m/min | Working speed: 40-60m/min | |||
| nu | name | qty | remark | |
| 1 | Hydraulic mill roll stand | 4set | φ300 taper clamp ,2point Pneumatic brake include the trolly and car,6sets | |
| 2 | Bridge | 1set | HEeavy bridge,steelless guard | |
| 3 | 4ply inline machine | 1set | Chongqing dongdeng ultrasonic inline system sensitive and accurate | |
| 4 | 4ply paper unoflod machine | 1set | Electrical heating ,φ320, | |
| 5 | Coating machine | 1set | Pasing diameter 215mm,alone run,frequency control | |
| 6 | Pasting machine | 1set |
Accurate grinding hard chrome coat roller 400mm New multi-head thread guide roller, so that the paper into the bonding balance |
|
| 7 | Press shaping machine | 1set |
6group electrical heat pressing rollerφ156mm; roller pneumatic adjust |
|
| 8 | Pull ,slitter | 1set | Rubber roller φ320mm,slitter structure 3 group slit knives manual correct the error | |
| 9 | NC CUT OFF | 1set |
Sprial knives ,knives rollerφ240mm servo computer control,auto charge order , Cut range :500-9999mm. |
|
| 10 | Stacker | 1set | Low speed ,electircal transverse feed out ,frequency sync control,automatic count | |
| 11 | Glue make system | 1set |
Electrical make and recycle the glue
|
|
