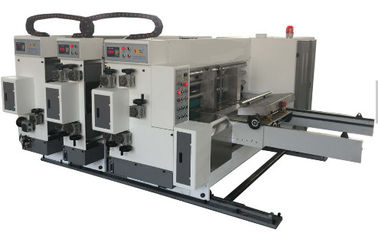

Small carton Automatic carton 2 color printing slotting machine
Main purpose :
The machine adopts vacuum adsorption auxiliary paperboard feeding system (air volume is adjustable). With the function which can complete the printing slotting, angle-cutting, slitting, creasing etc. of corrugated paperboard in one time.Slotting depth of this machine is with electric adjustment, and equipped with the scale reading. Slotting phase adjustment is to the planetary gear structure, adopting the electric computer type 360 degrees adjustment, and the upper and lower slotting disc and creasing wheels can synchronous moving to left or right, (note: some special tool to adjust the movement), it is easy to use and maintenance, compact, which is a professional in view of the small cartonslotting forming equipment
| Technological Parameter | ||
| Model | 2000 | |
| Max machine speed | 60-180 pieces/min | |
| Max feeding size (L * W) | 1700mm*600mm | |
| Min feeding size (L * W) | 450mm*170mm | |
| Min slotting interval | Negative knife (A * B) | 150mm*50mm |
| Positive knife (A * B) | 80mm*80mm | |
| Min height of box (H) | 70mm | |
| Dimension (Length*Width*Height) | 5500mm*3000mm*1650mm | |
| Weight | 3000 KG | |
