main Configuration;

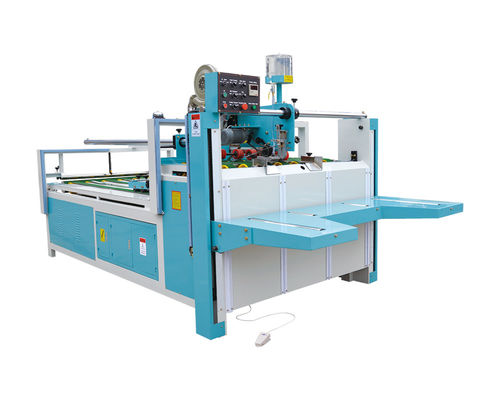

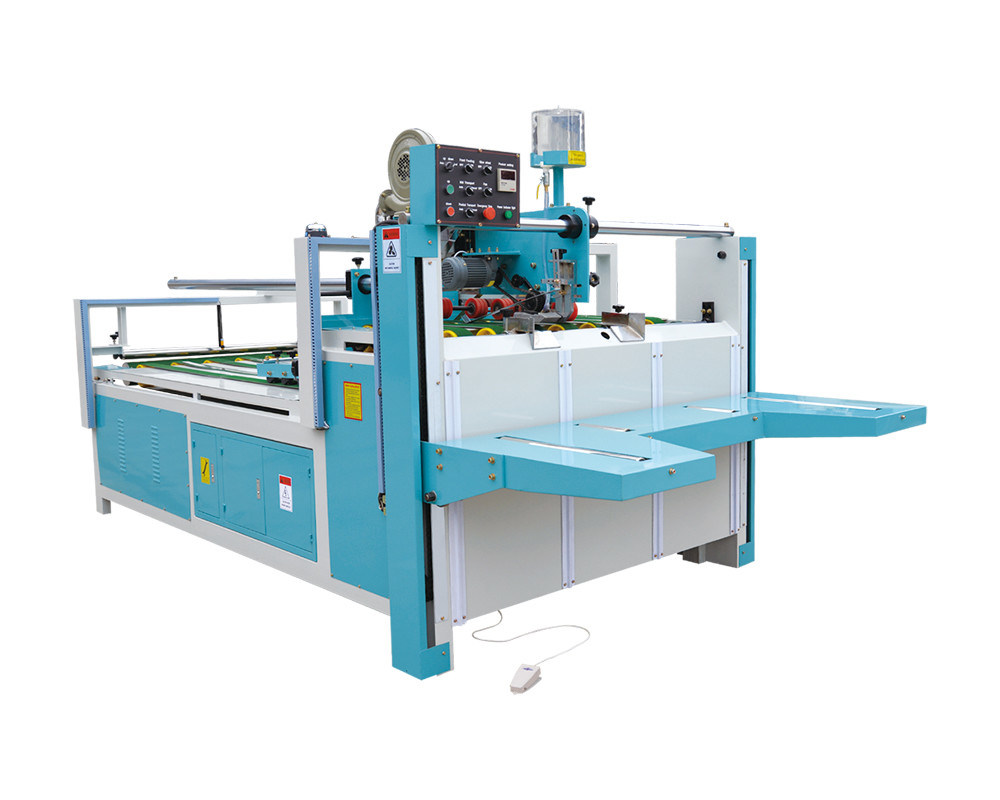

Semi-automatic gluer is niw-sype enviromental equiment,mainly used in carton sticking,abandon the traditional copper stapling method,raised the productivity,and the product quality is good.
Main machine frame:machine frame,ascend and descend worktable,front part convey equipment,front part amending equipmint,middle part convey equipmint,middle part press together equipmint,finished product side ontput eqipmit,electricae controlling equiment.
Usage and characteristec:
Simple and reliable operation system
Whole novel smooth design
Quick change of size
Automatic counting,straping set
Can glue 240mmor so for the carton wid plus height
Main technology parameter
|
specification
|
2800 size
|
|
Max size(length+width)*2
|
2800mm
|
|
Min size(length+width)*2
|
340mm
|
|
Max size(width+height)*2
|
1515mm
|
|
Min size(width+height)*2
|
260mm
|
|
Paper height
|
1000mm
|
|
Engine power
|
4.0kw
|
|
Machine length
|
5300mm
|
|
Machine weight
|
2500kg
|
|
Machinery speed
|
60m/min
|
