semi automatic rotary die cutting machine

China semi automatic rotary die cutting machine supplier

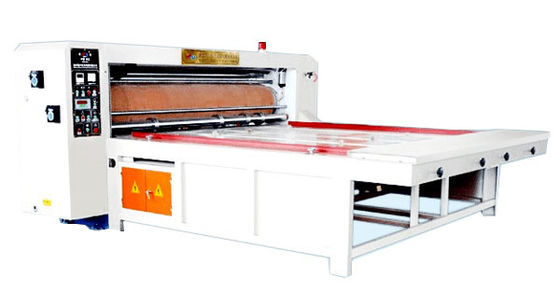

Large Image :  semi automatic rotary die cutting machine

Product Details:

Place of Origin: CHINA
Brand Name: JIALONG
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: standard export package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets/month
Detailed Product Description

semi automatic rotary die cutting machine



Performance of the main mechanisms:

◆ chain feed

◆ the rubber roller adopt mechanical control the position move left and right.The movement distance is 40mm.

◆ The phase adopt electric 360°adjust, accord the error to input the adjust data,can be adjusted while the machine running or stop.

◆ The space adjustment between rubber roller and die roller adopt self-locking structure,with cylinder big scope quickly adjust,decrease the rubber wear,increase the rubber life.

◆ The space adjustment between the feed rollers adopt self-locking structure.

◆ The unique speed compensation device can make the rubber roller rolling running with the die roller,make the surface speed of the rubber cushion is completely controlled by the die roller, the shape of the carton sheet will absolutely equal to the die pattern.

◆ There is a rubber repair device with the machine,the rubber can be used after be repaired.



Technical parameters:



WYAZS NAME

UNIT

MODEL

Max. paper coverage area

mm

1400×2000

1400×2200

1400×2400

Effective die cutting area

mm

1370×1800

1370×2000

1370×2200

Max. mechanical speed

pieces/min

60

60

60

Power of main motor

kw

5.5

5.5

7.5
