Characteristics:

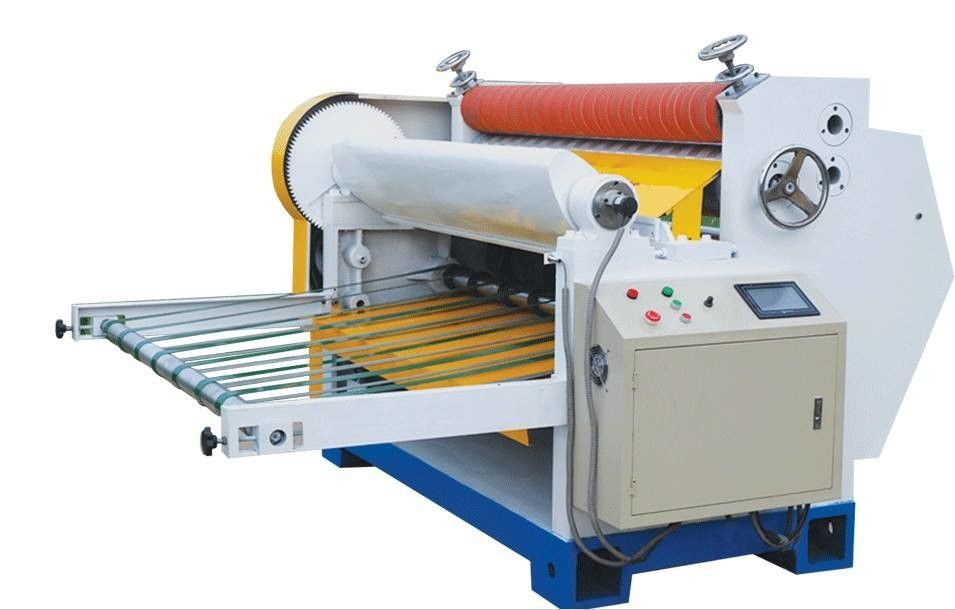

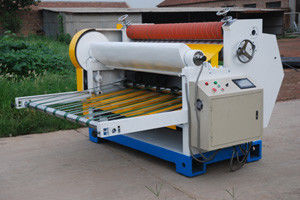

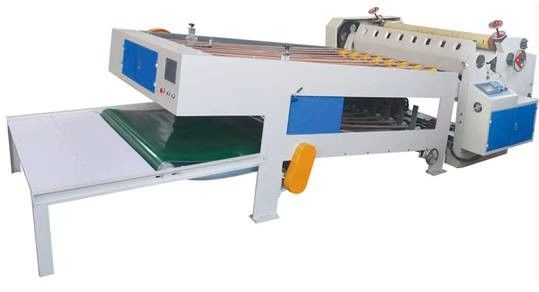

single cutter can do single corrugated cardboard vertically and horizontally cutting,it has change order fast and hig cutting precision,working speed fast etc.make litle waster,when changed the order,it suit for the top grade colour printing machine.
this machine adopt PLC touch screen to design,through it operator motor can know all the production status,adopt variable frequency motor to adjust the speed,servo control make the cutting length more exactly,making the cutting precision perfectly,(error±1,5mm)mechanical behavior will more fine.
Technique parameter:
|
Parameter |
Unit |
Specification |
||
|
model |
mm |
1400 |
1700 |
2000 |
|
Max cut width |
mm |
1300 |
1600 |
1900 |
|
Cut length range |
mm |
300-9999 |
300-9999 |
300-9999 |
|
Cut thick |
mm |
1-2 |
1-2 |
1-2 |
|
power |
kw |
6 |
6 |
6 |
|
Work speed |
m/min |
0-80 |
0-80 |
0-80 |
|
Fighre dimesion |
mm |
2100*2100*1450 |
2100*2100*1450 |
2100*2100*1450 |
|
Error |
mm |
±1.5 |
±1.5 |
±1.5 |
