BFY-Thin blade Slitter Scorer

China BFY-Thin blade Slitter Scorer supplier

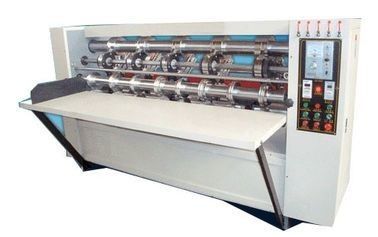

Large Image :  BFY-Thin blade Slitter Scorer

Product Details:

Place of Origin: CHINA
Brand Name: JIALONG
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: standard export package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets/month
Detailed Product Description

BFY-Thin blade Slitter Scorer



◎ Adopt front-scoring feeding, back double rubber roll leading paper, paperboard running steady.

◎ Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

◎ Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

◎ Electric control lift-down and correct error, easy to operate, suit for different requirements.

◎ Adopt China famous brand or imported electric element, dependable performance.


Technical parameters:

Model 2000 2300 2500
Machine dimension(mm) 2600*750*1400 2900*750*1400 3100*750*1400
Power 3.0kw 4.0kw 4.0kw
Max slitting
Inverse blade 1900mm 2200mm 2300mm
Positive blade 1800mm 2100mm 2200mm
Min slitting
Inverse blade 305mm 305mm 305mm
Positive blade 140mm 140mm 140mm
Min slitting length 435mm 435mm 435mm
Min scoring
Positive scoring 30mm 30mm 30mm
Inverse scoring 80mm 80mm 80mm
Scoring height 0-10mm 0-10mm 0-10mm
Blade(mm) φ200*122*1.2 φ200*122*1.2 φ200*122*1.2
Blade & Scoring
Composed Type
Three blade Four scoring/ Four blade
Six Scoring/ Five Blades Eight scoring
