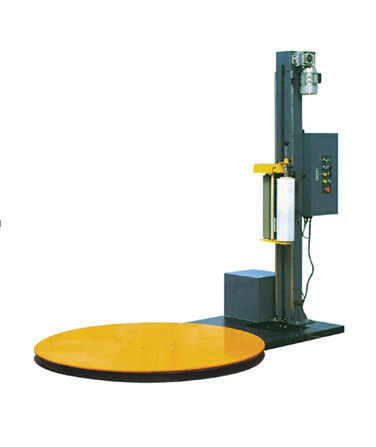

Machine introduction
Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry, electronic industry, building materials,home appliances, papermaking,foodstuff & drink etc.
Control
PLC control
Photo-eye pallet height sensor
0-3 top(bottom ) & up-down Wrap times choose
0—12RPM variable turntable speed by frequency changer
Variable carriage up/down speed
Cycle pause capability
Manual carriage up/down switch
Turntable jog button
Turntable
1650mm Diameter Structural steel plate
85mm low profile turntable
Position turntable alignment
Turntable soft start/soft stop, heavy duty chain drive
Film carriage Drive
Friction brake (variable film tension control )
Heavy duty chain carriage lift, calm and safety
Safety stop to avoid foot crush
Technology Data
Wrapping size(L×W) (500-1200)mm×(500-1200)mm
Packing height 2000mm
Turntable diameter 1650mm
Turntable Height 78mm
Turntable weight capacity 2000kg
Turntable speed 0-12rpm
Machine weight 500kg
Electrics 220V 50HZ 1Phase
Power 1.5kw
Machine dimensions (mm) 2650( L)×1650( W)×2400( H)
Packing efficiency 20-40 loads/h base on load
Option
Ramp
Pneumatic top plate
Packing height : 2400,2800mm
Turntable diameter : 1800mm, 2000mm
Turntable capacity: 2500kgs, 3000kgs
Machine Color
Other
Hinged mast for easy handling
Rear forklift transportable
