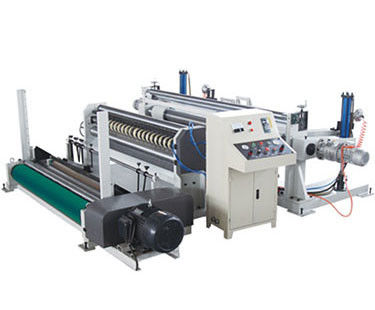

1600C separate full automatic high speed slitter machine

1600C separate full automatic high speed slitter machine:

First.main technical parameters

1. Base paper width Max1600mm Min800mm

2,Net paper width 1600㎜

3,base paper diameter Φ1200㎜

4.Winding Diameter Φ1200㎜

5. base paper inner core Ф76㎜

6.winding paper inner core Ф76㎜

7,slitter width 45-1600㎜

8,Base paper gram weight 60-510g⁄㎡

9,slitter knife 18 set (standard)

10. Upper slitter Φ105×Φ75×1.5㎜ 12crmou

11. Down circular knife Φ105×Φ65×8㎜ 9crs

12. winding paper shelf Inflatable shaft

13,brake device Pneumatic adjustable type,bilateral control

14,with Activities arc roll Adjust the high size, make note between generation gap, easy points

15, double low roll a Φ 200 ㎜ (material, polyurethane), a steel roller (seamless steel tube processing, surface plating)

16,paper loading unit adopt the mill roll stand loading paper,hydraulic control the paper roll up and down,Hydraulic motor 1.5 KW, move around, adopt mechanical way, the motor power for 2 sets of 1.1 KW moto

17,speed Max 450M/Min

18. Main motor power 11KW

19,speed control way frequency control

20. Weight 2.85T

21. external dimension 3400×4000×1115㎜

Second: characteristic

1.adopt the mill roll stand loading paper,hydraulic control the paper roll up and down,Mechanical power clamping,easy to load paper,Reduce the drive strength.

2,adopt movable curved roll, make sure the paper be slitted well 100%.

3. Can slitter the whole roll paper into bobbin in one time,Reducing waste of joint.

4.bobbin good tightness, disk and tidy

Third, introduction to the structure

This machine is mainly have paper roll stand, paper guide roller, slitting unit, paper winding device, unloading paper unit, pneumatic control system, frame and other parts.

1. paper frame: arm and arm, hydraulic system.

2. Slitting part: on the knife shaft, the knife shaft, guide shaft, upper and lower knives, etc.

3. Rewinding parts: double bottom roller, winding gas rose axis, etc.

4. automatic down paper device: push paper cylinder, push the paper axis.

5. Operating cabinet: frequency converter, electric button, indicator light, contactor for chengtai brand. Solenoid valve, pressure reducing valve, oil water separator, etc.
