Detailed Product Description

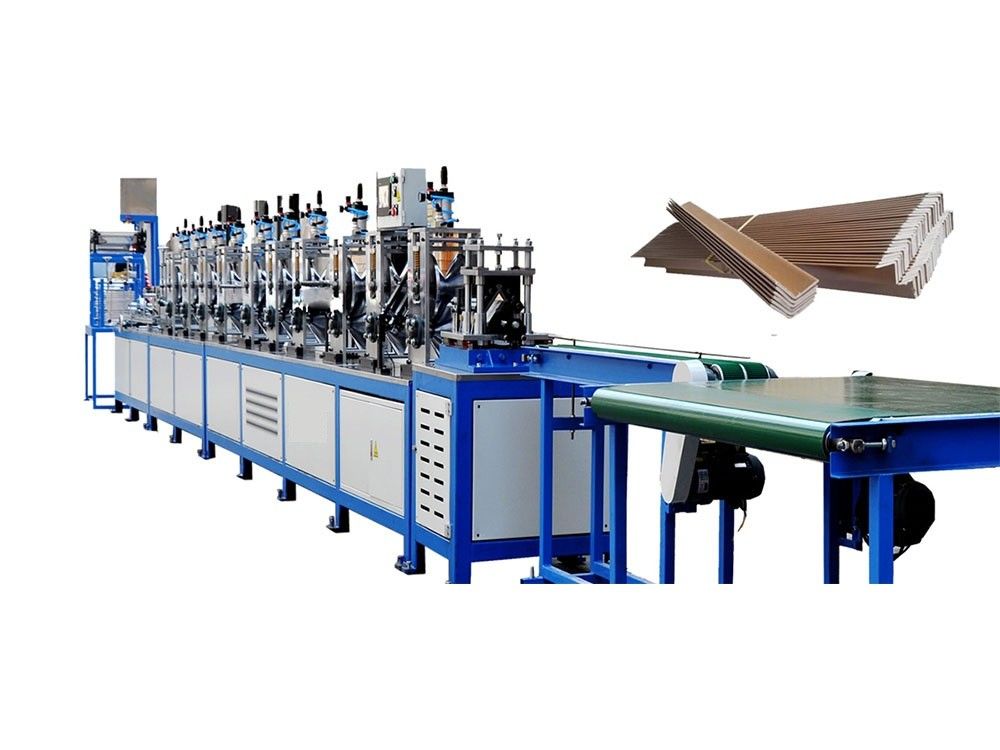

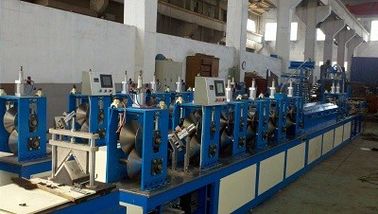

Paper Edge Protector Production line

Technique parameter:

model		XGM-100 G High speed model	XGM-100 D Three-use model
Serial number	Technical project	Technical Information
1	Paper corner type	L type paper corner	L type, U type paper trough and paper plate
1	Edge board size	20-100mm (one side size)	L: 20-100mm U: 20-70mm(each side) Flat board:40-150mm
2	Maximum speed	50m/min	30m/min.
3	Common speed	20-40m/min	15-25m/min.
4	Synchronize cutting	Synchronize by servo motor
5	Cutting power	Servo motor& cam drive
6	Cut precision	±1mm
7	Max. Layers of paper	12
8	Glue feeding system	Dia-pump(imported) automatic feeding the glue (recycle)
9	Dimension (mm)	22000×1400×2300mm	25000×1400×2300mm
10	Gross weight	3000kg	3500kg
11	Applicable paper	core paper:420gsm sand paper face paper :180-300gsm Kraft paper
12	Motor power	11kw
