New type full automatic carton stitcher machine

China New type full automatic carton stitcher machine supplier

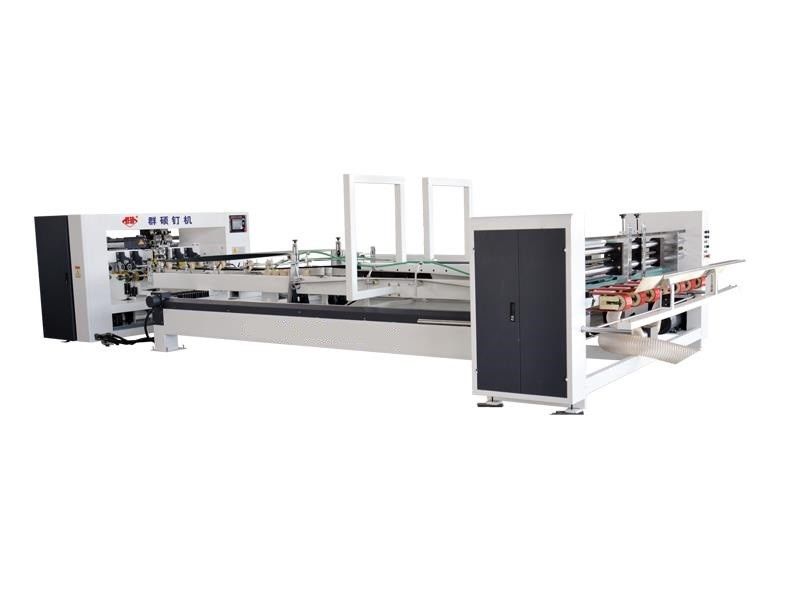

Large Image :  New type full automatic carton stitcher machine

Product Details:

Place of Origin: hebei
Brand Name: JIALONG
Certification: CE
Model Number: ZDD2200/2400

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: standard export package
Delivery Time: 30 days
Detailed Product Description

New type full automatic carton stitcher machine

New type full automatic carton stitcher machine

New type full automatic carton stitcher machine

Characteristics:

Automatic stitching machine is composed of vacuum feeding department and folder stitching department. Display adjustment control, PLC computer adjustment, double frequency conversions running synchronously. The operation model is easy, reliable and accurate. Automatic feeding, folding, stitching, counting and stacking. With high speed, save energy and cost.

Introduction of each department

feeding department

1. Adopt the lead edge belt absorption feeding accurate and reliable.

2.Adopt top grade electromagnetic clutch and electromagnetic brake system, for the individual control of feeding department.

3.The height of press-paper wheel can be adjusted, the suitable thickness of cardboard is 2-8mm.

4. Linkage with folding department, frequency control.

5.The front baffle of feeding department and belt can be adjusted right and left.

stitching department

1.Double imported servo drive high precision, reduce the mechanical transmission part, and reduce the mechanical failure rate.

2.Stitching department adopt the touch screen operation. Parameter (stitching distance, number, species and back baffle) could change expediently.

3. Control system adopts OMRON PLC control system.

4.All switches in the control box adopt Taiwan ShiLin.

5. Bottom block, knives of stitching department adopt German tungsten steel, which is wearable.

6.The head of nail is made of special steel, computer precious produce.

7. Switches and buttons adopt Taiwan Tiande.

8.change order in one minute very quickly, easy operation, no training



necessary. Suitable for single, double and strengthen nail.

9. automatic counter and easy for strapping.

10.stitching distance can reach to 100mm, which display and adjust on the touch screen. Can stitch whatever the carton have cover or not.

11. automatic adjust paperboard thickness.

New type full automatic carton stitcher machine

Specification:

Max length (A+B)*2 2200 mm 2400mm
Min length(A+B)*2 740mm 740mm
Max width(C+D+C) 800mm 960mm
Min width(C+D+C) 350mm 350mm
Height of feeder 700mm 700mm
power 6 HP 6 HP
Machine length 8000mm 9000mm
Machine width 3500mm 3700mm
Machine weight 3500kg 3800kg
Machine speed 45 pieces/min 45pieces/min
Stitching distance 30-100mm 30-100mm
Stitching number 1-99 stitches 1-99 stitches
