Full automatic bundling machine PE

China Full automatic bundling machine PE supplier
Full automatic bundling machine PE supplier Full automatic bundling machine PE supplier

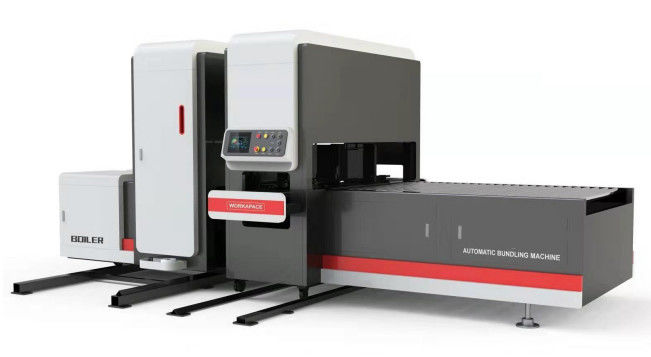

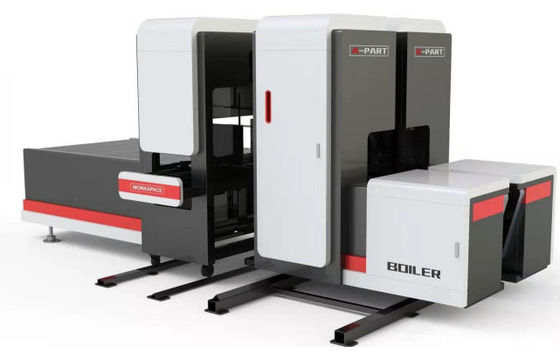

Large Image :  Full automatic bundling machine PE

Product Details:

Place of Origin: CHINA
Brand Name: JIALONG
Certification: CE
Model Number: 1300

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Contact Now
Detailed Product Description

                                                     Full automatic bundling machine

Full automatic bundling machine PEFull automatic bundling machine PE


fully automatic baler is a new product that our company has improved on the basis of the original mature products. At the same time, combined with foreign advanced technology, we adopt


domestic and foreign first-class brand accessories, aiming at achieving high stability, high speed and high automation, so that the users can truly achieve high efficiency, energy saving and labor saving.This machine matching connection any domestic brands, automatic stick box machine, automatic nailing machine, the whole machine adopts touch screen control, PLC running, simple operation, stable running, high processing speed can reach 18 packets per minute, solved the problems of restricting the carton bundled together after speed, not only save 1-2 operators could also improve the front automatic sticky box machine, stitching machine, the speed of real efficiency.

Characteristics of the equipment

1. With fast speed, the printing machine can open up to 180 pieces per minute for each package of 10 cartons, and 360 pieces per minute for each package of 20 cartons.

2. It takes 1-2 minutes to adjust the quick change order, and the operation is simple and convenient.

3. High degree of automation adjustment calculation adopts PLC, encoder, input number, one key adjustment.

4. Low operating power of the whole machine: 2.2kw, 1KW.



1. The connecting part of gluing box machine, nail box machine and baler of conveying department can buffer, check and connect.

2. Complete the carton length and ensure that the carton enters the packaging department neatly.

3. The packaging department realizes the packaging function of cartons, and completes the packaging task by patting and pressing the width of cartons

Install parameter

Total equipment weight: 2500KG

Motor details: transmission department -200 W 1:10, a gear reducer Collect part -100 W 1:10 gear reducer three

60W 1:10 gear reducer one set 90W 1:7.5 gear reducer one set 60w 1:5 gear reducer

Strapping department -100w 1:10 gear reducer for two sets 370W, two three-phase asynchronous motors

200 W 1:160 wheel reducer

.Total power: ≈2 kw.

Location of total power interface: package department group A power box Air inlet position: inside the rear end of the conveying part

Compressed air parameters: pressure required 0.4~0.6 mpa Displacement ≥ 0.9m cubed /min

Installation parameter : length 6300mm× width 3000mm× height 1950mm



Parameter for usage


Speed 18package/min.
Strapping belt 28# machine Strapping belt
Voltage 380V
Working pressure 0.6Mp
Air compressor 0.9m3
Total power 2.6KW
Running power 1.5KW
Size 500cm*260cm*190cm
Strapping way Double road in parallel


Brand and original of electric device




  Name Brand Original
1. Cylinder Airtec Taiwan
2. Solennoid valve Airtec Taiwan
3. Guide rail Shangyin Taiwan
4. Sliding block Shangyin Taiwan
5. Ball srew TBI Taiwan
6. Bearing HBR China
7. Contactor SIMENS German
8. Reducer Shengbang Taiwan
9. PLC Panasonic Japan
10. Touch Screen Kunlun China
11. Key Schneider France
12. Relay Omron Japan
13. Photoelectric switch Beifuning China
14. Switch,power supply Taiwan Mingwei Taiwan
15. Driving bearing Dafei Power Guangdong
16. proximity switch Omron Japan
