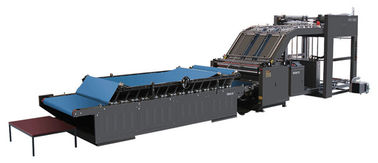

QG-Full automatic flute Laminator machine

China QG-Full automatic flute Laminator machine supplier
QG-Full automatic flute Laminator machine supplier QG-Full automatic flute Laminator machine supplier

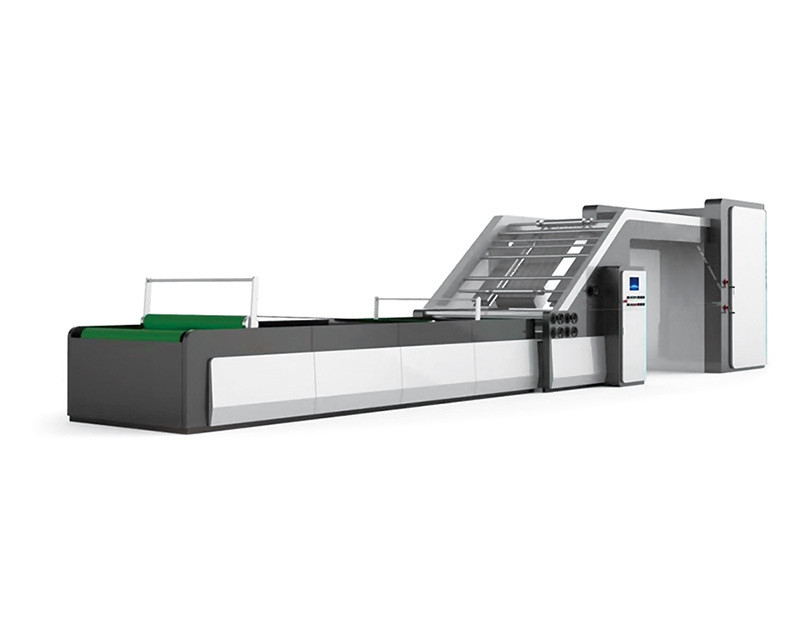

Large Image :  QG-Full automatic flute Laminator machine

Product Details:

Place of Origin: CHINA
Brand Name: JIALONG
Certification: CE ISO
Model Number: 1300/1450/1600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: standard export package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets/month
Detailed Product Description
Max. Sheet Size: 1300x1300mm Laminating Accuracy: ±1mm
Laminating Type: Top Sheet To Bottom Sheet Overall Dimensions: 8000x2200x2200mm
Min. Sheet Size: 400x400mm Power Supply: 380V/50Hz/3Ph
Weight: 5000kg Paper Thickness: 3-8mm
Total Power: 16.5kw Glue Type: Water-based Glue
Glue Consumption: 1-2kg/h Feeding Type: Automatic Continuous Feeding
Max. Speed: 120m/min

Major feature:

1.The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.

2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.

3.New concept front gauge location, position high accuracy, bottom sheet never pull ahead.

4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.

5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

6. Roller design scientifically, avoid glue fly out when the speed is high.

7. Pressure rollers adopt one side adjustment, convenient and fast.

8. Rocker controls wash roller's fluctuation, easy cleaning.

9. Counter designs scientifically, easy recording the amount you have been worked.



Model

QG-1300

QG-1450

QG-1600

Max size of cover face



1300mmX1100mm

1450mmX1100mm

1600X1100mm

Mix size of cover face



400mmX400mm

400mmX400mm

400X400mm

Economic speed



0-120 piece/min

0-120 piece/min

0-120 piece/min

Precision



±1.5MM

±1.5MM

±1.5MM

Power



10kw

10kw

10kw

Size



10m x 1.9m x 2.4m

10m x 2m x 2.4m

10m x 2m x 2.4m

Weight



About 5.5T

About 5.5T

About 6.0T
